Smart Communication Length Meter DE01 DE01

Depth 97mm ｜ Width 70mm ｜ Height 70mm

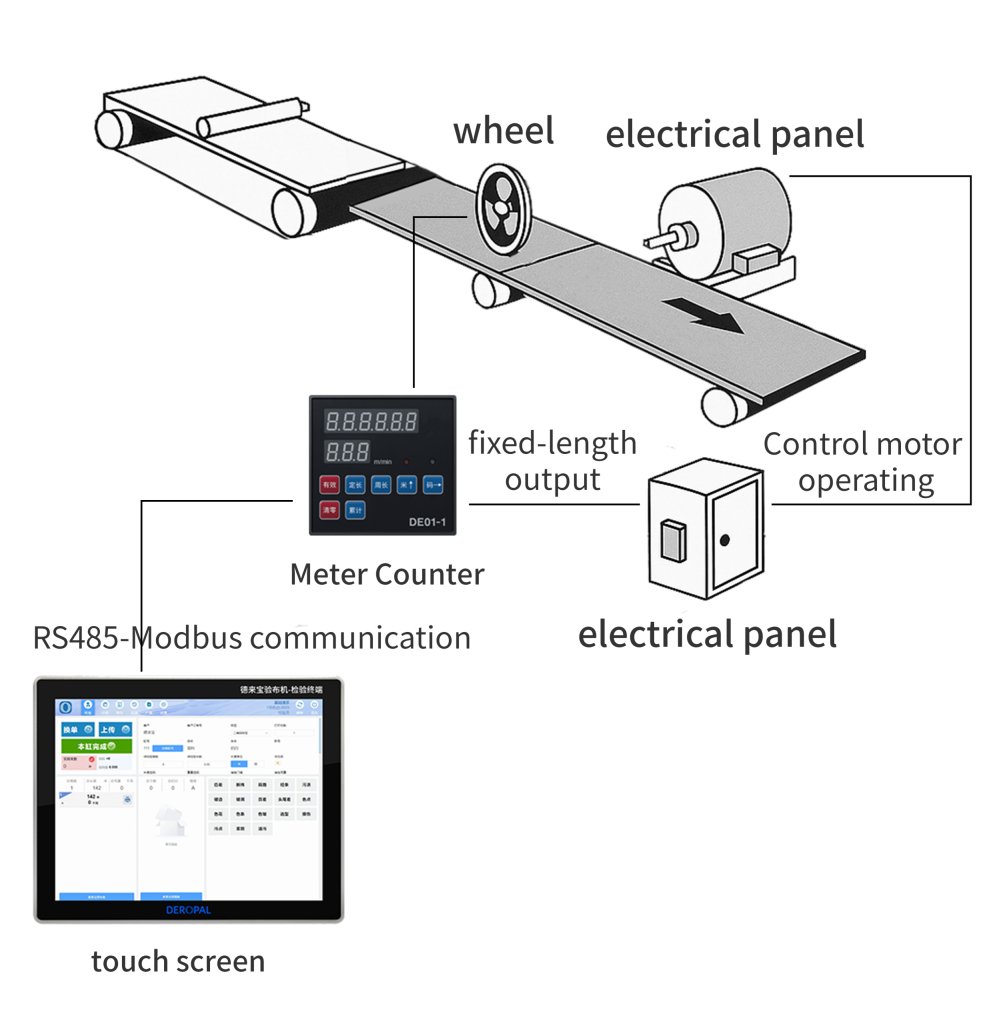

This textile inspection system features an intelligent length counter with 485-Modbus communication for real-time data tracking. The digital display allows easy adjustment of units, length settings, and preset values, while seamless ERP integration enables automated production reporting.

Panel Function Description

1、Roll Length Display

Displays with 2 decimal places

2、Roll Speed

3、 Display Preset Length

Hold [Valid] + [Preset Length]

3、Set Preset Length

Hold [Valid] + [Preset Length] for 5s；Use [Meter] and [Yard] to adjust

4、 Display Circumference

Hold [Valid] + [Circumference]Shows current value

4、Set Circumference

Hold [Valid] + [Circumference] for 5s，Digital tube blinks during setting

5、Meter Unit

Press and hold “Valid” and “Meter Unit” to switch to metric display. In “Setting” mode (indicated by flashing light), each press increases the value by 1, which resets to 0 when reaching the maximum value.

6、Yard Unit

Press and hold “Valid” and “Yard Unit” to switch to yard display. In “Setting” mode (indicated by flashing light), each press shifts the digit right by one position, returning to the starting position after reaching the rightmost digit.

7、 Reset Current

Press [Reset]Clears current value only

8、View Total

Hold [Valid] + [Total]Displays accumulated value

8、Reset Total

Press [Reset] + [Total] + [Valid]Clears all accumulated data

Pulse Display

Hold [Valid] + [Circumference] + [Preset Length]Shows current pulses

Pulse Setting

Press and hold “Valid”, “Circumference”, and “Preset Length” for 5 seconds to enter pulse count setting mode. Use the “Meter Unit (+1)” and “Yard Unit (Shift Right)” buttons to adjust values. The system automatically saves settings and returns to normal operation after 5 seconds of inactivity.
