Fabric Length Measuring Wheel DH02

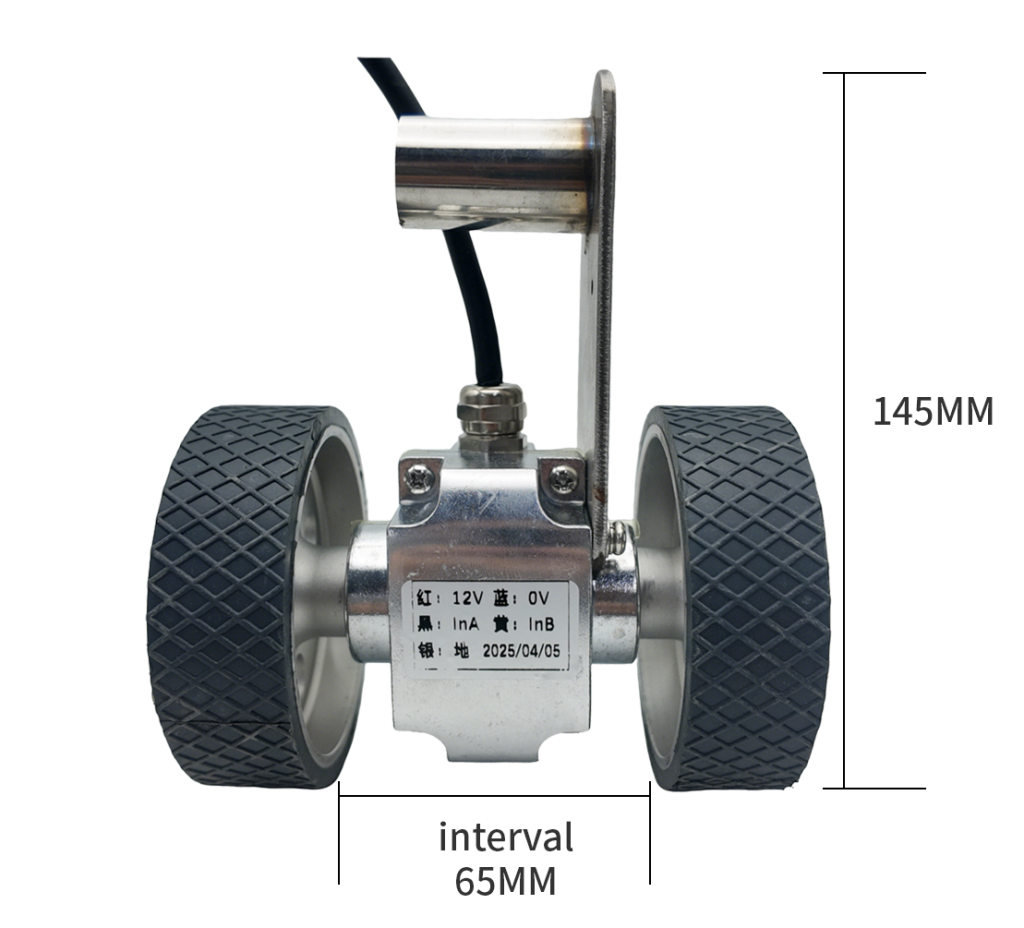

Depth 80mm ｜ Width 103mm ｜ Height 145mm

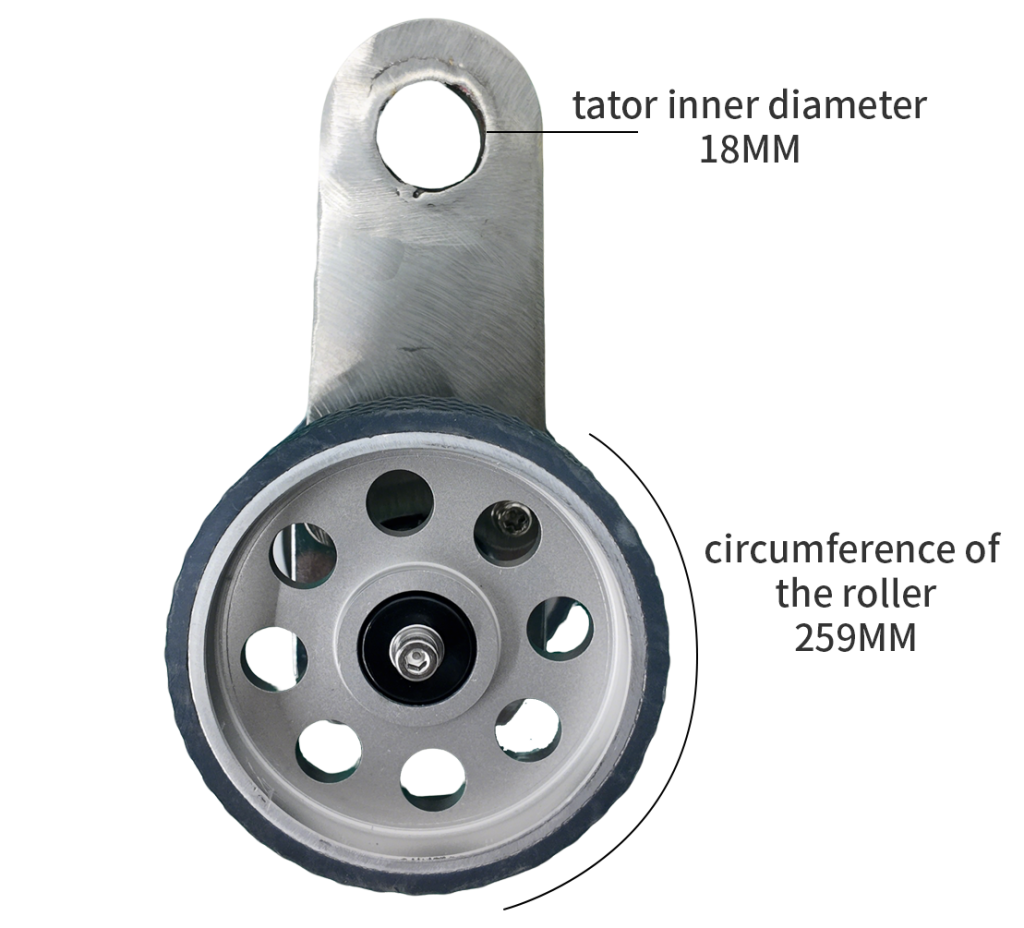

This textile-specific counting wheel features a durable 5mm rubber coating for shock absorption and long-lasting performance. The precision-polished cast aluminum components combine with heavy-duty stainless steel connectors for rock-solid reliability during fabric inspection.
Detailed Specifications
Model
DH02
Dimensions
104mm*145mm
Connection
4-core shielded cable
Voltage
12V
Temperature
-20 ℃～50℃
Output
NPN-AB phase
Wiring Guide
Standard cable length: 370cm, customizable
Red
12V
Black
InA
Yellow
InB
Blue
0V
